Type:Other Watering & Irrigation
Place of Origin:Tianjin, China
Brand Name:DAYU
Model Number:Filter
Material:metal
Usage:Agriculture
Material::Metal
Feature::High Efficiency
Size::1.2inch/1.5inch
Water pressure::PN8
Mesh::40-120
Max Water flux:15-20 m3/h
Connection:Thread
Centrifugal filter is suitable for the irrigation of vegetables, fruit trees, greenhouse, flowers, tea garden, green space and field crops. It can save water, improve plant quality, improve product grade, maintain ecological balance and benefit the country and people. It is a necessary irrigation product for the transformation from traditional agriculture to modern agriculture.

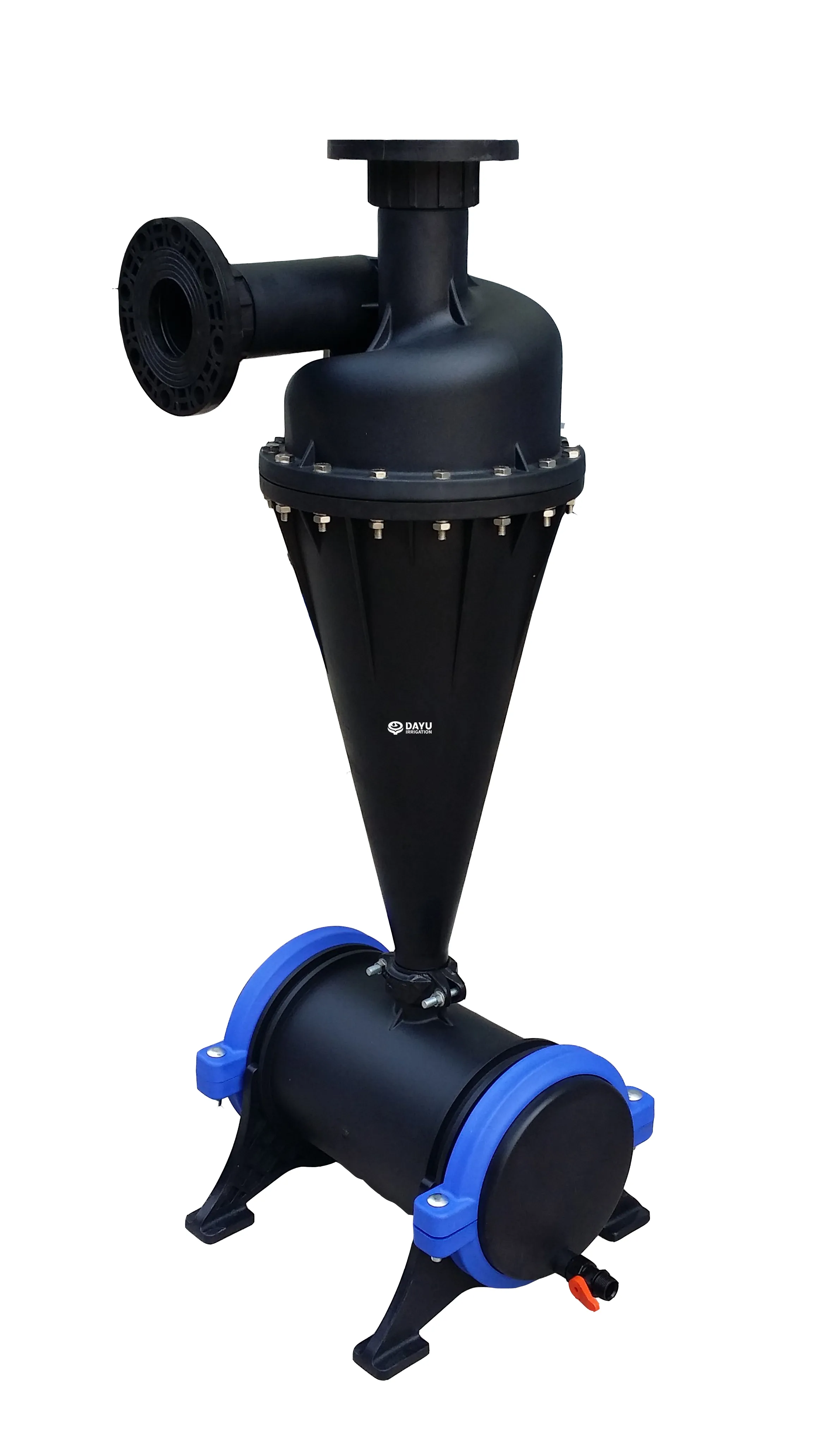

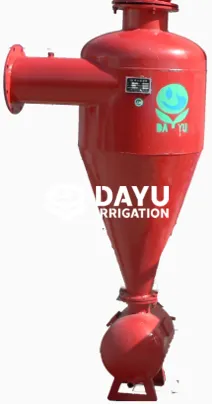

Centrifugal filter uses the centrifugal force generated by high-speed rotating water flow to separate sand and other heavy impurities from the water body. It has no filter screen or detachable parts, simple structure and convenient maintenance.
Centrifugal filter filtration unit from 2 "to 6" a variety of standard series; also according to customer requirements, provide non-standard series.
Centrifugal filter for more than 75 μ m sand, the separation rate is about 98%, but can not separate all the impurities in the water, such as water quality has higher requirements, can be used with other filters according to the needs.
Applicable Fields:
1.Primary filtration of water quality in micro irrigation system.
2.Primary treatment of groundwater and surface water with large sand content.
Performance Highlights:
1. The sand unloading port made of wear-resistant rubber has long service life and can be replaced.
2. The sand storage tank is equipped with quick opening hand hole cover, which is convenient for opening and closing.
3. The filter shell is manufactured on the automatic welding line, with uniform and reliable quality, and can withstand higher pressure.
4. The inside and outside of the filter tank and the pipeline adopt electrostatic powder spraying process; it is resistant to sewage erosion and ultraviolet radiation, meeting the requirements of outdoor installation.
5. Follow the principle of hydraulics, optimize the structure design, good separation effect.
6. Beautiful appearance.
Model number | Standard flow range | Connection mode | Volume of sand storage tank | Inlet and outlet pipe size | Single weight(kg) | |
Connection mode | ||||||
Minimum flow | Maximum flow | |||||
(m³/h) | (m³/h) | |||||
FLX2 | 11 | 15 | Bayonet/flange | 20 | 2” | 42 |
FLX3 | 35 | 52 | Bayonet/flange | 35 | 3” | 52 |
FLX4 | 52 | 80 | Bayonet/flange | 60 | 4” | 72 |
FLX6 | 120 | 160 | Bayonet /flange | 120 | 6” | 118 |
Dimension data | ||||||
Model number | D1 mm | D2 mm | L1 mm | L2 mm | H1 mm | H2 mm |
FLX2 | 219 | 219 | 275 | 400 | 697 | 837 |
FLX3 | 273 | 273 | 500 | 680 | 1120 | 1330 |
FLX4 | 325 | 325 | 600 | 820 | 1420 | 1660 |
FLX6 | 426 | 426 | 605 | 1140 | 1600 | 1905 |
