Type:Other Watering & Irrigation
Place of Origin:Tianjin, China
Brand Name:DAYU
Product ID ： ID161810RN
Thickness （mm)：0.16 0.18 0.2 0.3 0.4 0.6 0.8 1.0mm
Dripper Spacing (mm)：100 150 200 250 300 400 500mm
Dripper Flow[0.50]rate （L/h）：1.38L/h 2L/h 3L/h
Pressure ：0.1Mpa
Filtration ：120 mesh 120
Suitable ：For use in sowing in strip crops,modern greenhouse,fruit trees,and windbreak.、、。
Package ：（800-2000m/roll）
Technical Standard ：GB/T19812.3-2017
Roll length : 1000/roll ,2000m/roll ,2500m/roll ,3000m/roll or customize
Raw Material : PE
Inlaid patch type driplines
The new generation of drip irrigation products is developed from the inner cylindrical driplines. It is an economical micro-irrigation product that meets the requirements of precision agriculture and SDI development.
Wall thickness: 0.18 0.2 0.3 0.4 0.6 0.8 1.0 1.2mm, etc.
Dripper spacing: 100 150 200 300 400 500mm, etc.
Flow rate: 0.8L/H 1L/H 1.2L/H 1.38L/H 1.8L/H 2L/H 2.4L/H 3L/H 3.2L/H
Pressure: 0.05-0.3Mpa
Filtration requirements: 120 mesh 120 mesh filtration
Scope of application: suitable for drill crops, modern greenhouses, fruit trees and windbreak forests
Advantage:
High return on investment: The best balance of drip irrigation performance and budget, without worrying about product stability and uniformity of crop growth.
Uniform flow: The pressure compensation dropper provides the correct amount of water and nutrition for each plant in long-distance driplines transportation and high and low undulating terrain.
Good blocking resistance: The continuous self-cleaning mechanism flushes out debris and will not block during the entire crop life cycle.
The laying of branch pipes is long, and the cost is reduced: using fewer main pipes, it can irrigate branch pipes up to 500 meters long, reducing installation costs
Agricultural Driplines/tape systems for farm irrigation with high quality and competitive price
Features of driplines :
1. The round dripper is produced first by high-precision mould,then stuck to PE hose.
2. The dripper which is directly welded inside the pipe has slight pressure loss and accurate distribution.
3. Good anti-block property, smooth flow channel and even water distribution.
4. There are two kind of drippers: pressure-compensation and nonpressure-compensation, suitable for different terrain.
5. Different diameter, wall thickness and dripper spacing can be produced.
6. The most significate feature is that it can be used over 5-8 years. It’s durable and widely used in open field irrigation.
The water-saving intelligent irrigation is the most effective water-saving irrigation method in the drought and water shortage areas at present, and its water utilization rate can reach 95%. Drip irrigation has a higher water-saving and yield increasing effect than spray irrigation, and it can combine fertilization to improve the fertilizer efficiency more than twice. It can be used for irrigation of fruit trees, vegetables, cash crops and greenhouses. It can also be used for irrigation of field crops in drought and water shortage areas. Its disadvantage is that the emitter is easy to scale and block, so the water source should be strictly filtered. At present, domestic equipment has basically passed the standard, and drip irrigation should be actively developed in areas where conditions permit.

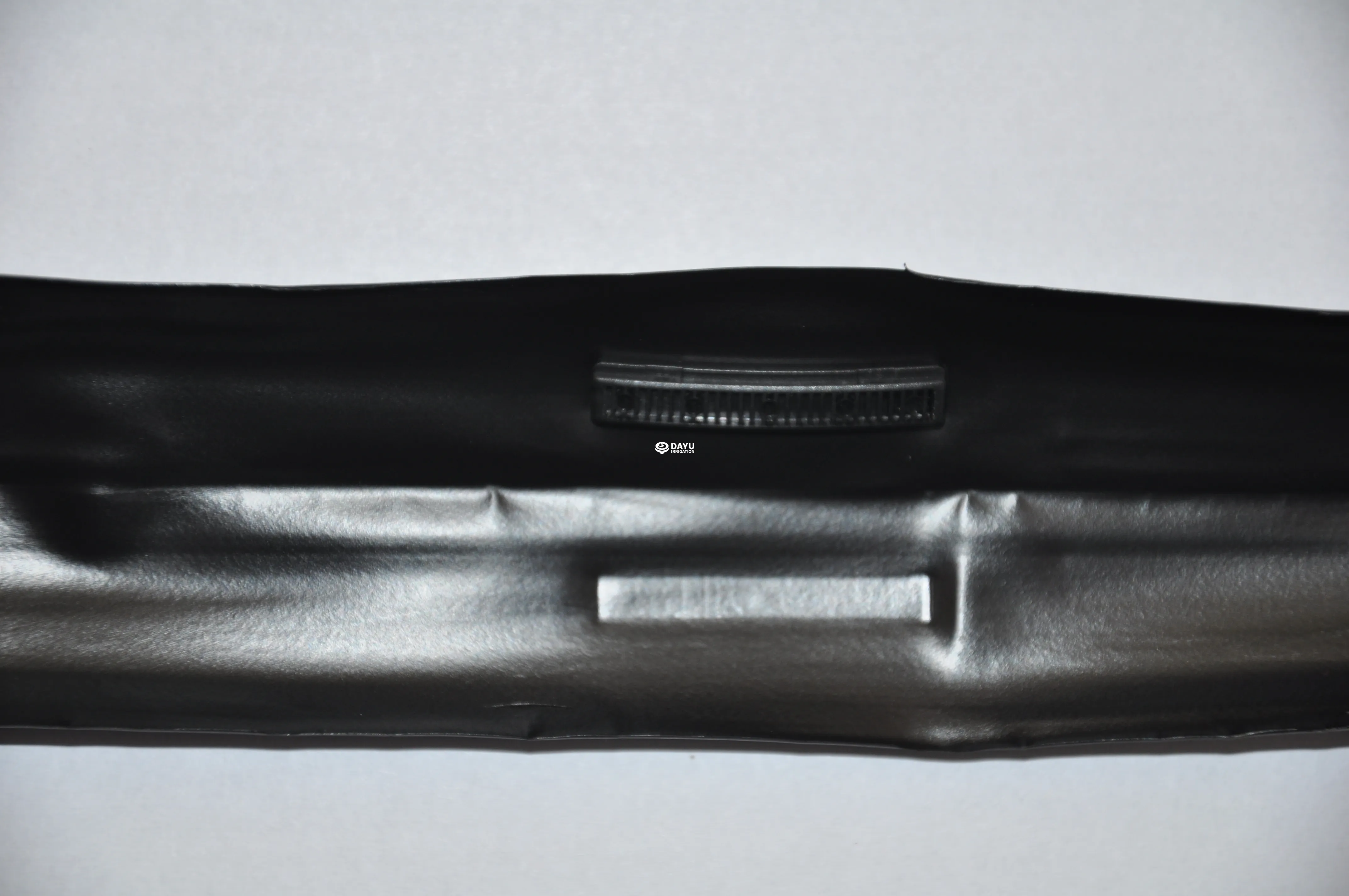

1. Embedded flat emitter drip belt is an integrated driplines that embeds flat shaped emitters on the inner wall of the pipe belt, and is widely used in greenhouse Irrigation of cash crops in shed and field.
2. The emitter is integrated with the tube belt, which is easy to install and use, low in cost and investment.
3. The emitter has a self filtering window with good anti clogging performance.
4. Labyrinth flow passage is adopted, which has certain pressure compensation effect.
5. The distance between emitters can be determined according to user requirements.
